GS Series (Gantry Type Double Column Machine)

(Vision Wide Double column Machine)

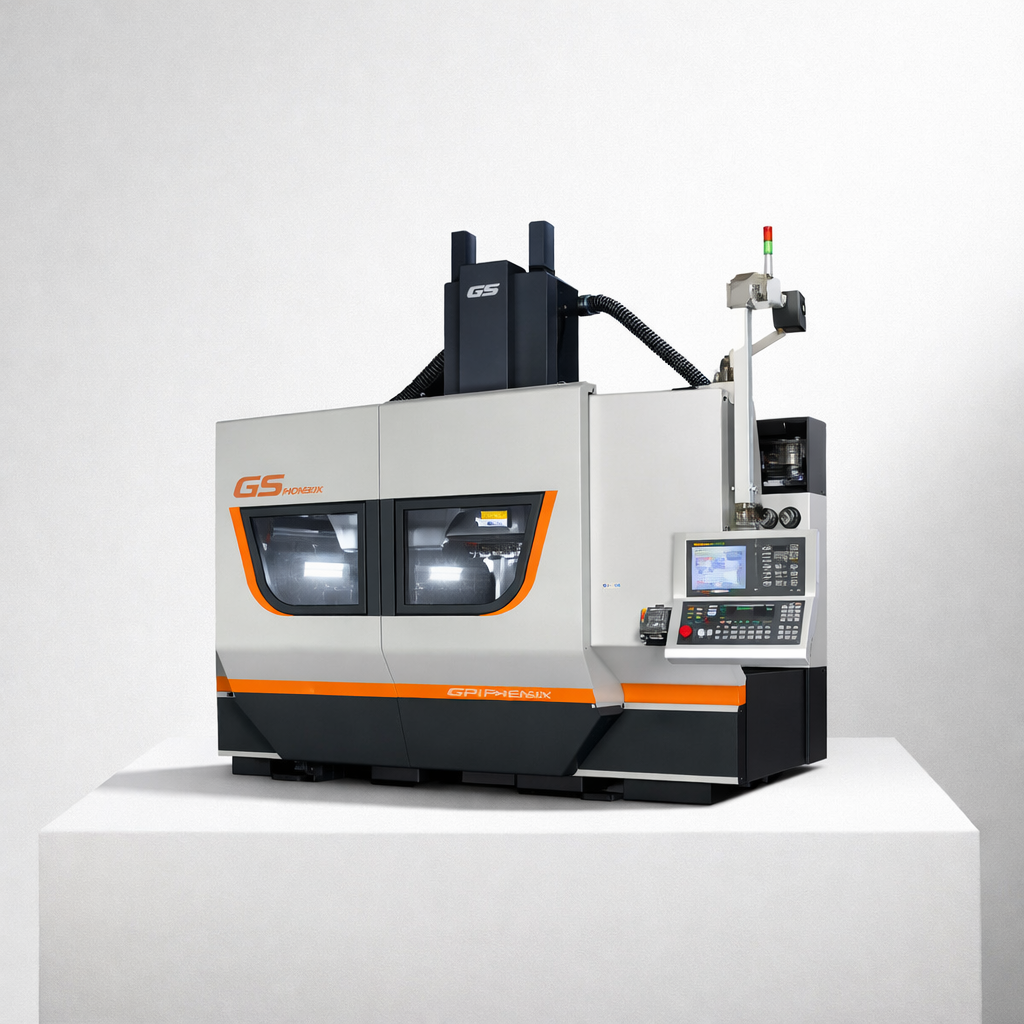

GS Series, the gantry-type CNC milling machine center from Vision Wide, is engineered with a rigid box-type structural design, making it ideal for installations with limited working space. Its integrated one-piece worktable and column construction ensures exceptional rigidity, delivering stable and high-speed feed performance to meet the demanding requirements of precision mold manufacturing and aluminum machining.Powered by a high-performance spindle and an optimally engineered structure, the GS Series achieves superior productivity while producing smooth, high-quality surface finishes within reduced cycle times. The machine offers a maximum rapid traverse speed of 24 m/min on all three axes and a maximum cutting feed rate of 24,000 mm/min, ensuring efficient, accurate, and reliable machining operations.

Inquiry Now
Visite Website
Features

High-Speed, High-Accuracy Machining

Combination of columns, bed, and table in one piece casting, the Pyramid type weight distribution by spindle, ran, cross beam and bed arrangement.
X-axis with dual direct-driven servo motor, plus dual linear scales can ensure positioning accuracy at high speed motion.
Z-axis is direct-driven, by servo motor prevents the error from indirect-driven between mechanisms, and decreases power consumption, and improves Z-axis motion performance efficiently.
Direct-driven spindle 10,000/15,000rpm, low noise, backlash, vibration and power consumption can ensure high work-piece surface accuracy after rapid cutting.
Low table height, closer operating zone, wider door width are convenient design for user.
Chain type chip conveyor (standard) is able to remove iron chips efficiently.
Specification Accessories
Model Units GS-1220 GS-1620 GS-2020 GS-2520 GS-3020
X axis mm 1,200 1,600 2,000 2,500 3,000
Y axis mm 2,000
Z axis mm 800 / 1,000 (opt.)
Table size mm 1200 × 2000 1600 × 2000 2000 × 2000 2500 × 2000 3000 × 2000
Maximal loading kg/m² 3,000
Spindle power (S1/S6) kW L: 15 / 18.5 (Cont. / S6-40%)   H: 18.5 / 22 (Cont. / S6-40%)
Spindle Speed rpm Built-in spindle, 20,000
Spindle Taper - HSK-A63
Cutting feed rate mm/min 1 – 24,000
Rapid traverse m/min XYZ: 24 / 30 (OPT.)
Positioning Accuracy (JIS-B6333) mm ±0.005 / full travel
Repeatability (JIS-B6333) mm ±0.002
ATC Magazine capacity pcs 16T / 20T (opt.) / 32T (opt.)
Gross weight kg 25,500 28,500 31,500 35,250 3
Standard Accessory & Function
  1. Fanuc 0i MF controller
  2. Built-in spindle 20,000 rpm (HSK-A63)
  3. Z travel 800 mm
  4. Spindle cooler
  5. 16T tool magazine with arm type ATC
  6. Centralized auto lubrication system
  7. Independent lubrication oil collector for 3 axes
  8. Air blast through spindle
  9. Wash gun & pneumatic interface
  10. Cutting fluid cooling system
  11. Fully sheet metal guard (without top cover)
  12. Table side with chip groove
  13. Heat exchanger
  14. Working lamp
  15. Program cycle end and alert signal lamp
  16. Movable manual pulse generator
  17. RJ45 interface
  18. Footswitch for tool clamping
  19. X dual linear scales; YZ-axis positioning device
  20. Auto power off function
  21. Spindle loading protection by software
  22. XYZ axis travel hard limits protection
  23. Foundation pads and bolts kits
  24. Adjustment tool and tool kits
  25. Z axis auto moving up at power off function
  26. Technical manuals (operation, maintenance manual and circuit diagram)
  27. SIEMENS 840D controller
  28. Z travel 1,000 mm
  29. Built-in spindle: 24,000 rpm (HSK-A63), 12,000 rpm (HSK-A100), 15,000 rpm (HSK-A100)
 Optional Accessory & Function
  1. FANUC 31i B controller
  2. HEIDENHAIN iTNC530 controller
  3. Direct driven spindle: 15,000 rpm (BBT-40), 12,000 rpm (BBT-50), 10,000 rpm (BBT-50)
  4. 20 / 32 tools magazine with arm type ATC
  5. Air conditioning for electrical cabinet
  6. Reserved CTS interface
  7. CTS function: 20 bar / 70 bar
  8. Spindle ring coolant nozzle
  9. Oil skimmer
  10. Oil mist
  11. Fully sheet metal guard (with top cover)
  12. Screw type / Blade type chip conveyor on table side
  13. Dual Belt Type Chip Conveyor / coolant tank
  14. Chip cart
  15. Sub table
  16. YZ Linear scale
  17. Auto tool length measurement system
  18. Auto workpiece measurement system
  19. Transformer
  20. Chip flush function on table
